XL Motor

$1,116.15

EAN: N/A SKU: XLMK - 90814 Category:
Share

Description

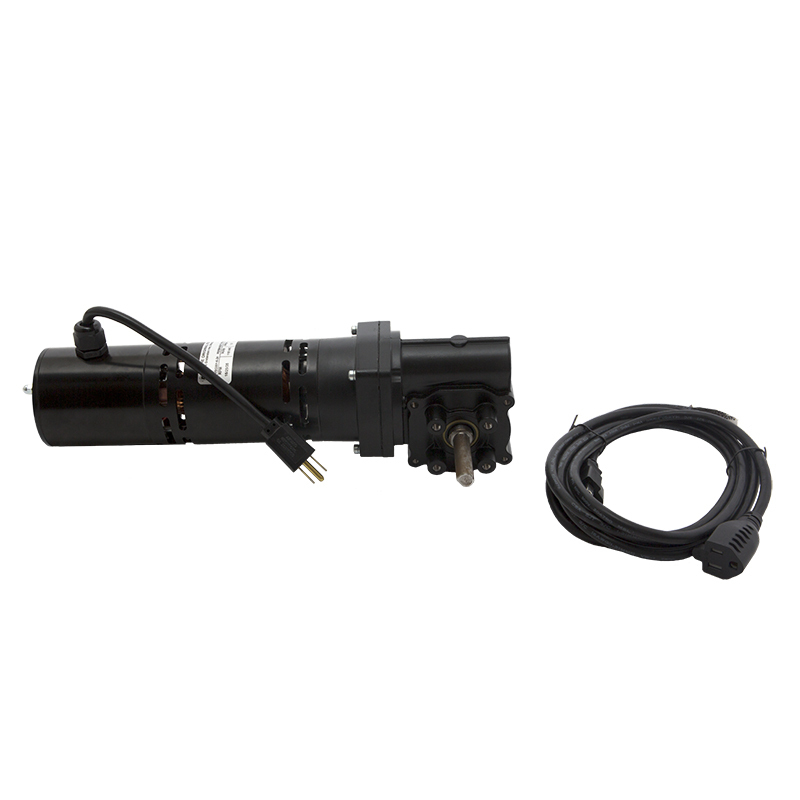

Resinator XL Series Custom Permanent Magnet DC (PMDC) Right Angle Worm Drive Gear Motors with Integral Onboard Motor Controls 120 VAC

Resinator XL Series Motor
Resinator XL Series customized fractional horsepower permanent magnet DC right angle worm drive gear motors are heavy duty, durable, long life, high efficiency motors designed specifically for Resinator Xl commercial and industrial applications. Our double reduction worm drive right angle gear motors are rated to 600 inch lbs continuous torque. The XL series motor is rated at 10 ft-lb. Hi speed is 35 rpm, Mid speed is 25 rpm, and Low speed is 15 rpm. Amp rating is 1.5

Features:

Shortened A/C plug for convenience
Built in On/Off – Forward/Reverse switch
Internal fan and motor housing louvers keep motor cool during operation
Custom mounted digital control panel with built in variable speed
Class H insulation (180 C)
UL Recognized
Specially engineered long life brushes
Powered by permanent magnet DC motors
Rugged aluminum die cast gear box and end housings
Motor quality ball bearings
Resilient corrosion proof powder coat finish limits oxidation
Stainless steel output shaft 1/2” standard diameter
Continuous torque rating to 600 inch lbs
Steel and bronze high performance gearing for high strength and durability
High temperature synthetic grease filled gear box for long life and quieter operation
Patent Pending

Benefits:

Quiet operation
Heavy duty and functional design
Efficient motor for long life battery powered applications
Customized specific for Original Resinator applications
Easy to install
Network of representatives for service and technical support
Designed and manufactured in the USA

Resinator XL Series Motor Controller
Unlike other DC motor controllers, the new Resinator XL Series PWM single quadrant microprocessor DC electric motor controllers are an integral part of the DC gear motor, providing the unique feature of integral onboard motor controls that eliminate the hassle of remote placement of a motor control and associated wiring and panel space requirements for mounting an independent motor control drive.

With Resinator XL Series motor controllers, you get the “complete package” – custom DC gear motors with integral onboard PWM microprocessor DC motor controls – in one compact, flexible design.

Ideal for applications requiring multiple output speeds. Designed for applications requiring constant speeds at varying loads.

Additional Resinator XL motor controller benefits include higher torque at low speed, longer brush life, more precise speed control, fast acting current limit, slow start, higher efficiency, and lower motor form factor; resulting in reduced motor heating and eliminating the need for large expensive filter capacitors.

Resinator XL integral onboard DC electric motor controllers also include 3 speed button settings with indicator LEDs.

Features:

New intregral onboard PWM microprocessor DC motor controller
120 VAC input
3 speed button settings
Higher torque at low speed
Longer brush life
Precise speed control
Fast acting current limit
Low motor form factor
Reduced motor heating
Eliminates expensive filter capacitors

Specifications:

90-130 VDC output
120 VAC Input Voltage DC Motor Controller
3 amp continuous output current
22kHz, 0-100% duty cycle PWM rate
1/50 – 3/8 HP @ 115 VAC single phase

The Quality You Demand – Made In The USA!

Additional information

Weight 12 lbs
Dimensions 14 × 7 × 5 in
